ACCESS CONTROL SYSTEMS
Access Control System STARTOS
Access Control System "STARTOS" is constructed from anti-piggybacking systems for door (APS-D), portal-passage (APS-PP), fullheight turnstile and revolving door (APS-FT), rapid passageway (APS-RP) which permit on human body magnetic weight measuring to register and prevent piggybacking events – traditionally the most difficult events for control.
One "branch" of ACS "STARTOS" consists of:
1. computer in security post (package does not include it);
2. up to 32 APS systems;
3. converter RS-232 – RS-485;
4. software for personal computer.

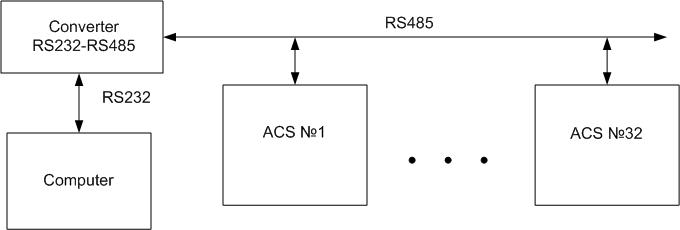

ACS "STARTOS" one "branch" structure
The entire Access Control System "STARTOS" can include unlimited number of "branches".

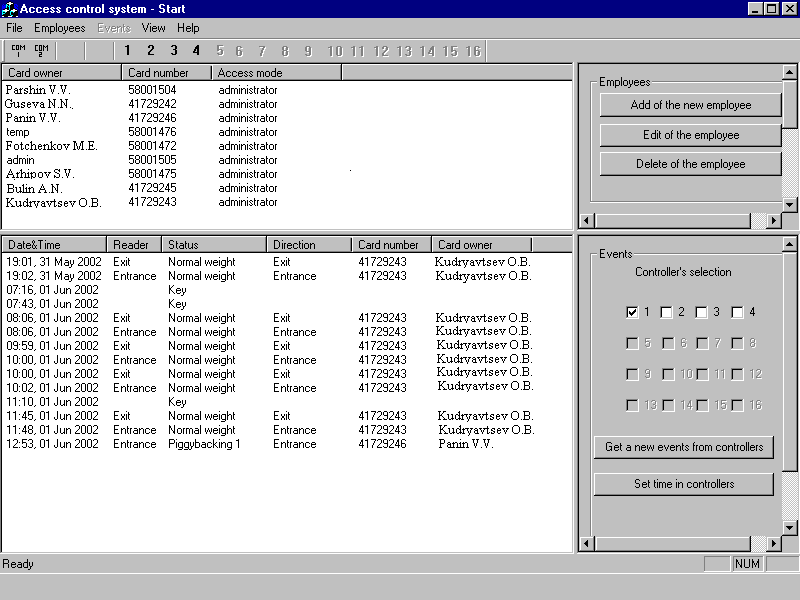

Demo version
ACS "STARTOS" basic technical data
| Interface between computer and controllers | RS-485
TCP/IP 10 Mbit(soon) |
| Operational system | Windows 2000, XP |
| Database platform | МSDE, MS SQL Server 2000 |
Equipment has one-year warranty.
