LOOP METAL DETECTOR (LMD)
LMD has been developed to detect of metal objects like gun or bigger, but not
small like watch, carried by man through door embrasure.
LMD is inexpensive variant in comparison with traditional metal detectors. LMD
can be hidden from people viewing.
LMD consists of transceivering antenna and electronic unit.
|
|
|

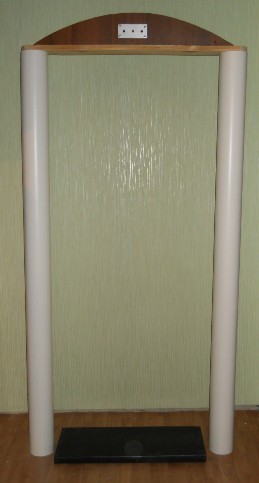

Loop
metal detector
LMD TECHNICAL CHARACTERISTICS
|
False alarm signals frequency in case of
carried metal objects absence (False Acceptance Ratio ) |
less than 1/(24 hours) |
|
Passing speed range |
0.2 ... 2.0 m/sec |
|
Threshoulds number |
8 |
|
Electric field intensity |
no more than 20 V/m |
|
Magnetic field intensity |
no more than 5 A/m |
|
Operating temperature range |
- 20...+50 0C |
|
Relative air humidity |
no more
than 95% at 20 0C |
|
Power consumption |
5 W |
|
Antenna dimensions |
2.1 * 0.9 m |
|
Width of passageway |
0.80 m |
|
Warming-up time |
30 sec |
|
|
